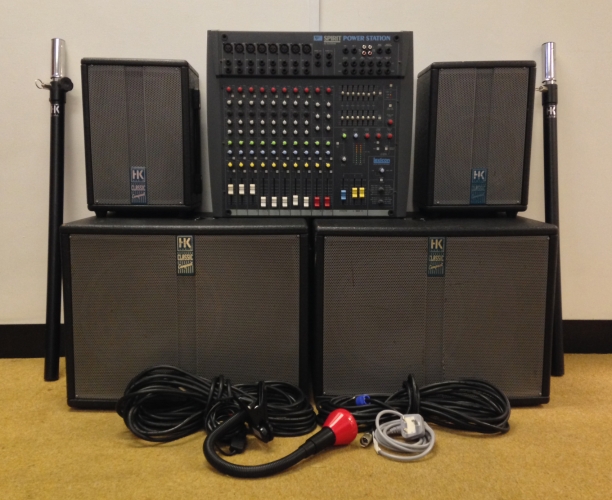

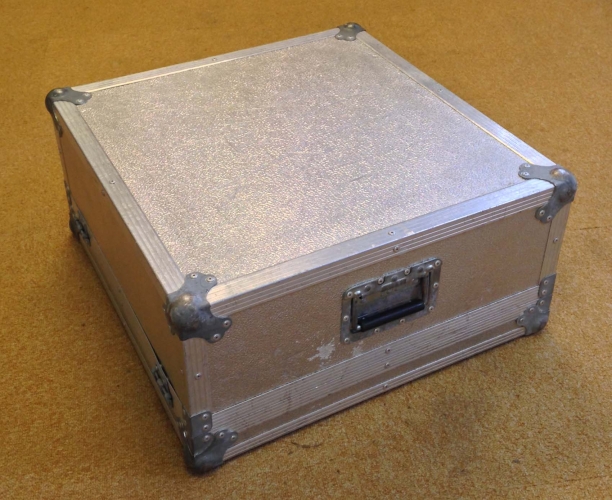

Here we have a ready to rock SPIRIT POWERSTATION PA SYSTEM, complete HK Audio 82 and 112 speakers, speaker stands, mixer flight case, high quality speaker cables and lamp. The flight case perfectly accommodates the mixer with or without cables and keeps it very well protected and easily transportable. Everything is in perfect working order and has served me well at many events.
Cash buyers will also receive the following bonus items:
- 3 x XRL cables
- 3 x TRS cables
- 2 x New mic stands

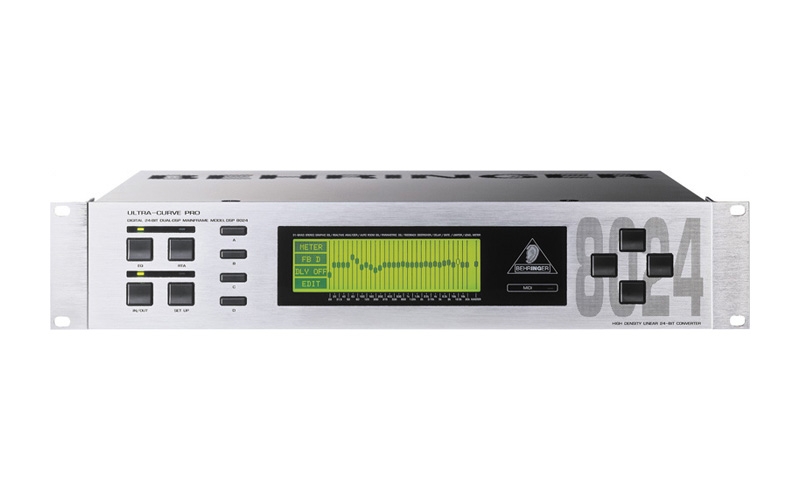

- Behringer Ultracurve Pro compressor/equaliser

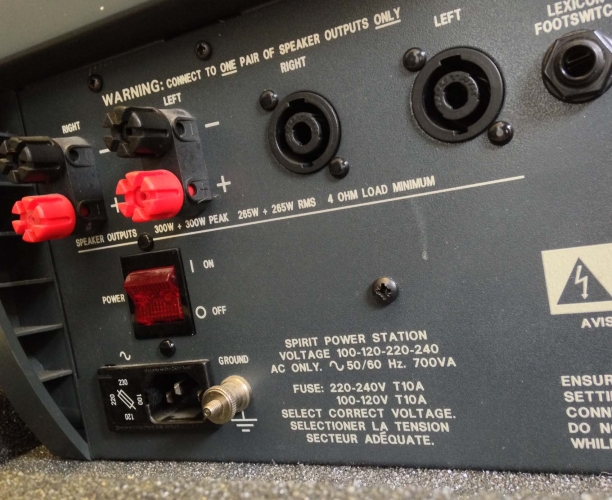

Spirit Powerstation 600 PA Power Amp

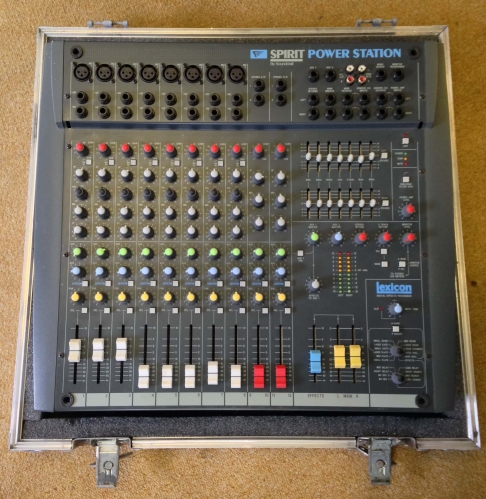

SPIRIT POWERSTATION is the basis of a complete sound system, combining a high quality Mixer, Effects Controller, Graphic Equaliser and Power Amplifier in a single unit.
POWERSTATION incorporates circuit technology identical to that used on some of the most sophisticated Soundcraft consoles. The mono input channels are able to accept a wide range of Microphone and Line level signals from separate input sockets. Every mono channel features wide range gain control, 3-band Equalisation with swept Mid section, plus a Hi-Pass Filter, 2 Auxiliary Sends, one of which may be switched to a dedicated FX bus to feed the built-in Lexicon Effects Controller, PFL(Pre Fade Listen) and panning to a Stereo Bus. Each channel has a pre-EQ, pre-fade insert point and is controlled by a high-quality linear fader.
POWERSTATION is provided as standard with a pair of stereo inputs. Each stereo input includes a 3-band fixed frequency EQ and similar facilities to the mono input.
The Master section provides master faders for the Left and Right outputs, plus a fader controlling the mix to the Lexicon Digital Effects Processor, the output of which feeds back into the main mix. Master level controls are provided for the Auxiliary Sends and Stereo and 2-Track Returns, and headphone listening and LED bargraph metering is included to monitor the main mix or PFL signal. A Mono output is provided which sums the post-fade Left & Right signals to mono.
A built-in 7-band Graphic Equaliser offers precise correction of the output signal if required, and is normally patched into the input to the integral power amplifier.
HK Audio Classic Compact 112 Sub Speakers
The 112 Sub is a very compact subwoofer, which extends the frequency response of the loudspeakers 8.1 and 82 in the bass range. It is equipped with a direct loaded 12" - cone loudspeaker in a bass reflex housing and has a built-in passive crossover. The IL 112 Sub stands out through its powerful, low-distortion and thus natural bass reproduction with extremely compact dimensions. It is ideally suitable for acoustic applications in which the bass range of existing loudspeaker systems should be extended for distances of up to 10 m depending on sound pressure requirements. A controller is not required for operating the IL 112 Sub. It is however, possible to use the Digital Field Controller (DFC)
Specifications
Power-handling nominal (RMS): 150 W
Power-handling, peak: 500 W
Power-handling, program: 250 W
Frequency response +/- 3 dB: 75 Hz - 130 Hz
Frequency response -10 dB: 65 Hz - 230 Hz
Nominal impedance: 8 Ohms
Sensitivity 1W: 102 dB
Maximum SPL, @ 10% THD: 115 dB
Connections: 1x Speakon NL4, 1 set of binding posts
LF Speaker: 12" HK AUDIO® Custom
Crossover frequency: 150 Hz / 12 dB per octave
Enclosure: 16 mm MDF
Grille: impact-resistant protective steel grille
Finish: black or white acrylic enamel
Dimensions (WxHxD): 55 x 42 x 43 cm, 21 2/3" x 16 1/3" x 17"
Weight: 23 kg / 50.7 lbs.
HK Audio Classic Compact 82 Loudspeakers
The HK Audio 82 is a very compact 2-way full range loudspeaker enclosure with a built-in passive crossover. It is fitted with a direct loaded 8"-conical loudspeaker in a bass reflex housing and a ceramic high frequency driver with horn. This equipment makes a frequency response in the bass range possible which is sufficient for the transmission of speech and the representation of background music even without an additional subwoofer.
Apart from tonal neutrality, the HK Audio 82 loudspeakers stand out mainly due to their high speech transfer ability and wide dynamic range. They are ideally suited for close-range acoustic applications for which distances of up to approx. 10 m have to be bridged, depending on the sound pressure requirements. The HK Audio 82 loudspeakers small dimensions allow them to blend into the surroundings almost unnoticed.
A controller is not required for operating the HK Audio 82 loudspeakers. It is possible to use the Digital Field Controller (DFC).
Specification
Power handling nominal (RMS): 100 W
Power handling (program): 200 W
Power handling (peak, 10 ms): 300 W
Impedance: 16 ohms
Frequency response (± 3 dB): 120 Hz to 18 kHz
Frequency response (-10 dB): 90 Hz to 20 kHz
Axial sensitivity (1W/1m, half-space): 103 dB
Maximum SPL (3 % THD, half-space): 116 dB
Maximum SPL (10% THD, half-space): 125 dB
Maximum SPL (calculated at peak): 126 dB
