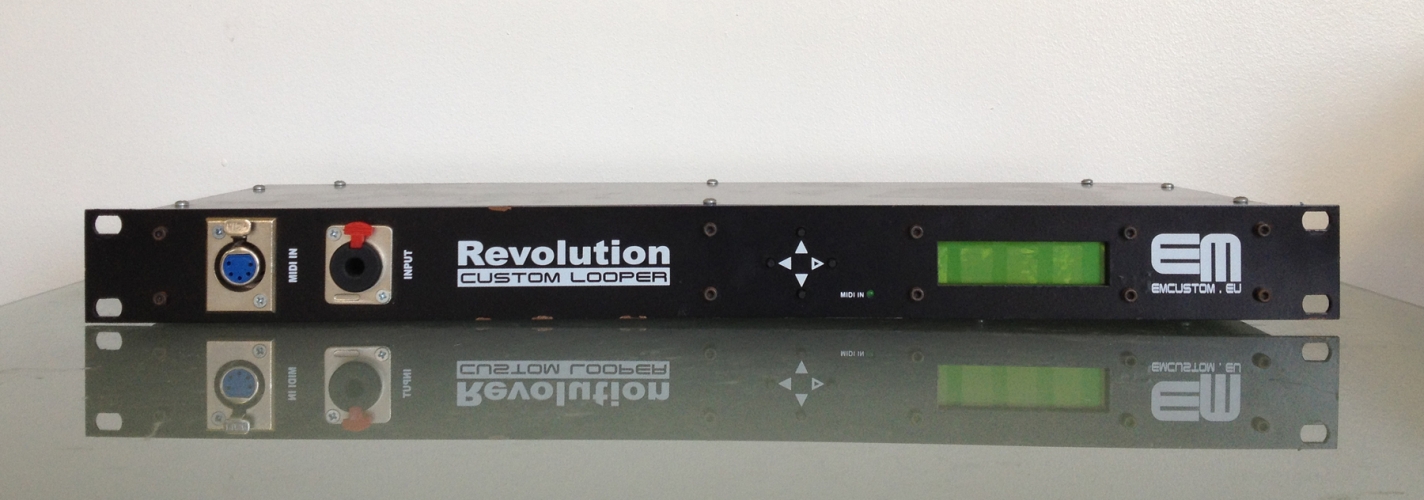

Revolution is a combination of a fully customizable advanced MIDI looper, and a switch in one box. It is dedicated to rack systems that require the versatility of the control. Included with any MIDI controller will provide a complete switching system.

This unit is far better than the Voodu Lab GCX and RJM Gizmo, in fact it really puts them to shame! In fact after using both, I have upgraded to this one. It has superior signal quality and speed and is ideal for guitar pedals and rigs. The icing on the cake is that you can split 5 loops to be before the preamp and 5 loops to be after the preamp in the FX loop.

I have two of these units, the advertisement is only for one, but I run them in sync and in parallel in the stereo FX loop so I can use stereo effects. In addition with each and every preset you can individually have every type of switch control (up to 6) simultaneously and I used this to control the 6 switch in my Mesa Boogie V-Twin rack (also advertise for sale on Ebay).

Switches are configurable as latching or momentary individually.
Looper control is done via MIDI from the PC or CC groups. Also, the ability to learn MIDI.
Convenient and easy to read menu with a 2x16 LCD display for easy operation.
Optionally, the input buffer and set the volume from the MIDI

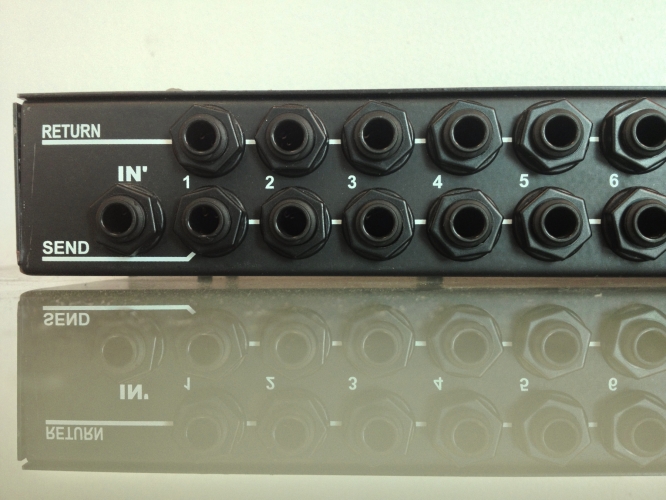

Looper allows you to split loops to two groups of five (group in front to preamp and amp effect loop group)

Key features of Revolution:

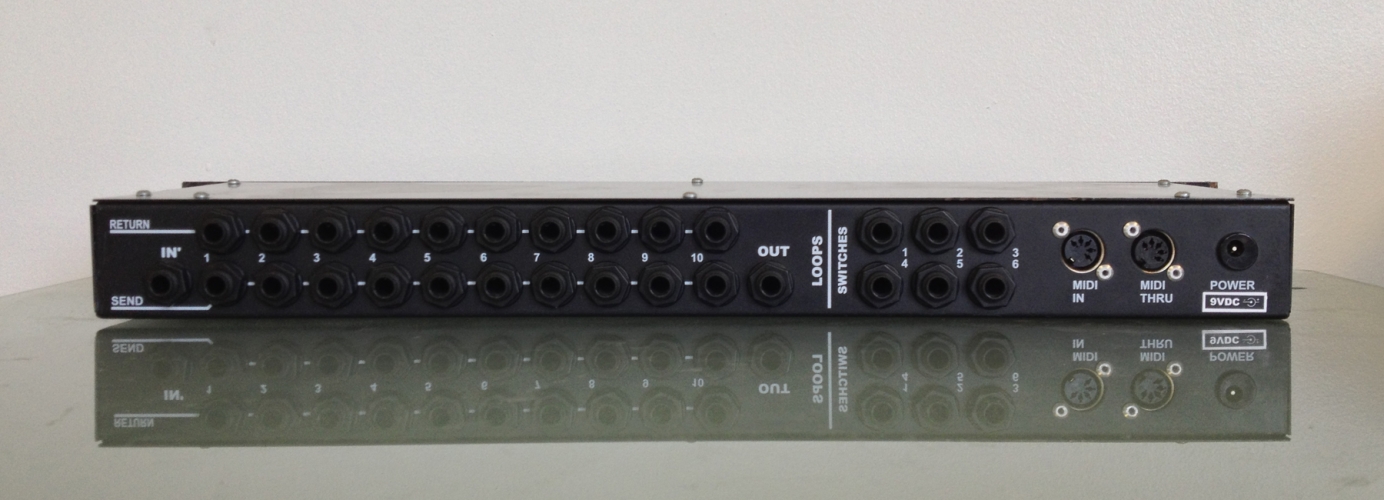

• 10 loops controlled from a MIDI
• 6 switches controlled from a MIDI
• Possibility of split the loops into 2 groups
• Optional preset volume setting from the MIDI (CC)
• Switches configurable as momentary or latching
• Switching of high quality relays
• Clear User Menu
• Displaying the operation status
• Ease of programming
• Manual mode - without the necessity of using a MIDI controller
• Optionally, the input buffer, based on high-quality operational amplifiers
• True Bypass
• The possibility of combining multiple loopers without loss of signal quality

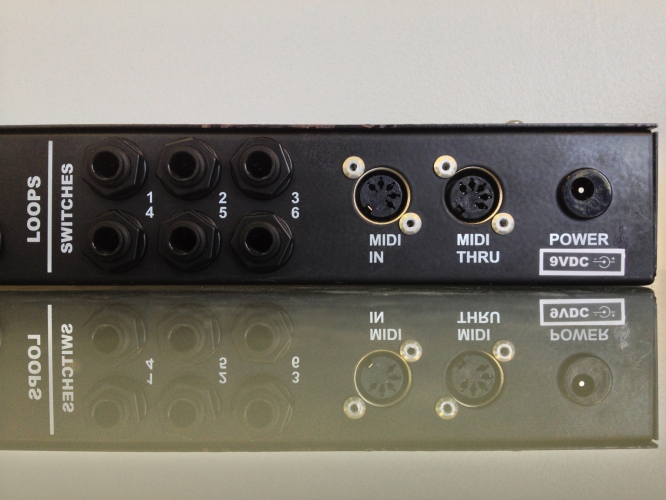

• Full compatibility with MIDI standard. PC and CC messages
• Power supply 9 VDC, 750mA
• Steel chassis, 1U RACK, coated in black

The unit is used but in very good condition and in perfect working order
